Toughened Glass Insulators and Beyond – All You Need in One Place
Best-Selling Toughened Glass Disc Insulators for Sale

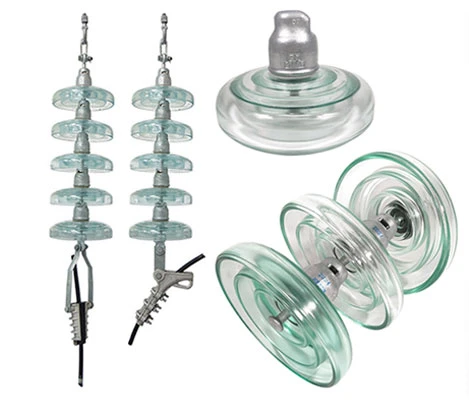

40 kN (U40B), 70 kN (U70BS, U70BL, PSD70E), 120 kN (U120B, U120BP), 160 kN (U160BS, U160BP) Toughened Glass Disc Insulator
Click here to view the specifications for Standard Profile Glass Insulators (40-210 kN)
| Basic type | Minimum mechanical failing load (kN) | Nominal diameter D(mm) | Nominal spacing P(mm) | Nominal creepage distance(mm) | Standard coupling/PIN | One by one tensile load test | Wet power frequency withstand voltage (kV) | Dry lightning impulse withstand voltage (kV) | Net weight (kg) |
| U40B | 40 | 178 | 110 | 185 | 11 | 20 | 25 | 70 | 1.65 |
| U70BS U70B/127 | 70 | 255 | 127 | 320 | 16 | 35 | 40 | 100 | 3.77 |
| U70BL U70B/146 | 70 | 255 | 146 | 320 | 16 | 35 | 40 | 100 | 3.78 |
| U100BS U100B/127 | 100 | 255 | 127 | 320 | 16 | 50 | 40 | 100 | 3.9 |
| U100BL U100B/146 | 100 | 255 | 146 | 320 | 16 | 50 | 40 | 100 | 4 |
| U120B U120B/127 | 120 | 255 | 127 | 320 | 16 | 60 | 40 | 100 | 3.9 |
| U120B U120B/146 | 120 | 255 | 146 | 320 | 16 | 60 | 40 | 100 | 4.2 |
| U160BS U160B/146 | 160 | 280 | 146 | 400 | 20 | 80 | 45 | 125 | 6 |
| U160BS U160BM U160B/155 | 160 | 280 | 155 | 400 | 20 | 80 | 45 | 125 | 6.2 |
| U160BL U160B/170 | 160 | 280 | 170 | 400 | 20 | 80 | 45 | 125 | 6.5 |
| U210B U120B/170 | 210 | 280 | 170 | 400 | 20 | 105 | 45 | 105 | 6.7 |
Click here to view specifications for Anti Pollution Profile Glass Insulators (70-300 kN)
| Basic type | Minimum mechanical failing load (kN) | Nominal diameter D(mm) | Nominal spacing P(mm) | Nominal creepage distance(mm) | Standard coupling/PIN | One by one tensile load test | Wet power frequency withstand voltage (kV) | Dry lightning impulse withstand voltage (kV) | Net weight (kg) |
| U70BP/146 | 70 | 255 | 146 | 400 | 16 | 35 | 45 | 110 | 5.2 |
| U70BLP U70BP/146 | 70 | 280 | 146 | 450 | 16 | 35 | 50 | 125 | 5.8 |
| U70BP/146 | 70 | 320 | 146 | 550 | 16 | 35 | 55 | 140 | 6.1 |
| U100BP/146 | 100 | 255 | 146 | 400 | 16 | 50 | 45 | 110 | 5.2 |
| U100BLP U100BP/146 | 100 | 280 | 146 | 450 | 16 | 50 | 50 | 125 | 5.9 |
| U100BP/146 | 100 | 320 | 146 | 550 | 16 | 50 | 55 | 140 | 8.2 |
| U120BP/146 | 120 | 255 | 146 | 400 | 16 | 60 | 45 | 110 | 5.3 |
| U120BLP U120BP/146 | 120 | 280 | 146 | 450 | 16 | 60 | 50 | 125 | 6.0 |
| U120BP/146 | 120 | 320 | 146 | 550 | 16 | 60 | 55 | 140 | 8.3 |
| U160BP U160BP/155 | 160 | 280 | 155 | 450 | 20 | 80 | 50 | 125 | 7.0 |
| U160BP/170 | 160 | 280 | 170 | 450 | 20 | 80 | 50 | 125 | 7.1 |
| U160BSP U160BP/146 | 160 | 320 | 146 | 550 | 20 | 80 | 50 | 125 | 8.8 |
| U160BLP U160BP/170 | 160 | 320 | 170 | 550 | 20 | 80 | 55 | 140 | 9.1 |
| U160BP U160BP/155 | 160 | 320 | 155 | 550 | 20 | 80 | 55 | 140 | 9.0 |
| U210BP U210BP/170 | 210 | 320 | 170 | 550 | 20 | 105 | 55 | 140 | 9.6 |
| U240BP/170 | 240 | 320 | 170 | 550 | 24 | 120 | 55 | 140 | 9.9 |
| U300BP U300BP/195 | 300 | 320 | 195 | 550 | 24 | 150 | 55 | 140 | 11.3 |
Click here to view specifications for Open Profile Glass Insulators (70-300 kN)
| Basic type | Minimum mechanical failing load (kN) | Nominal diameter D(mm) | Nominal spacing P(mm) | Nominal creepage distance(mm) | Standard coupling/PIN | One by one tensile load test | Wet power frequency withstand voltage (kV) | Dry lightning impulse withstand voltage (kV) | Net weight (kg) |
| U70BP/127M | 70 | 380 | 127 | 365 | 16 | 35 | 45 | 90 | 6 |
| U70BP/146M | 70 | 380 | 146 | 365 | 16 | 35 | 45 | 90 | 6 |
| U100BP/127M | 100 | 380 | 127 | 365 | 16 | 50 | 45 | 90 | 6.2 |
| U100BP/146M | 100 | 380 | 146 | 365 | 16 | 50 | 45 | 90 | 6.2 |
| U120BP/127M | 120 | 380 | 127 | 365 | 16 | 60 | 45 | 90 | 6.3 |
| U120BP/146M | 120 | 380 | 146 | 365 | 16 | 60 | 45 | 90 | 6.3 |
| U160BP/146M | 160 | 420 | 146 | 380 | 20 | 80 | 50 | 95 | 7.9 |
| U160BP/155M | 160 | 420 | 155 | 380 | 20 | 80 | 50 | 95 | 7.9 |
| U210BP/170M | 210 | 420 | 170 | 380 | 20 | 105 | 50 | 95 | 8.6 |
| U240BP/170M | 240 | 420 | 170 | 380 | 24 | 120 | 50 | 95 | 8.6 |
| U300BP/195M | 300 | 420 | 195 | 380 | 24 | 150 | 50 | 95 | 12.1 |
Click here to view specifications for PSD70E Glass Insulators (70 kN)
| Type | Minimum Mechanical Failing Load (kN) | Diameter (D), MM | Structural Height (H), MM | Creepage Distance, MM | Withstand Voltage at 50 Hz (under rain), kV | Impulse Withstand Voltage, 1.2/50μs, +/-, kV | Voltage at Radio Interference Level, kV | Weight, kg |
| PSD 70 E | 70 | 270 | 127/146 | 411 | 45 | 110/110 | 25 | 4.6 |
The price of the toughened glass disc insulator may vary based on availability, raw material prices, and demand. To receive the latest price, please fill out the order form below. Provide the quantity, delivery address, and contact information, and we will respond to your inquiry within one business day.
Reliable Toughened Glass Disc Insulators for Your Projects and Business

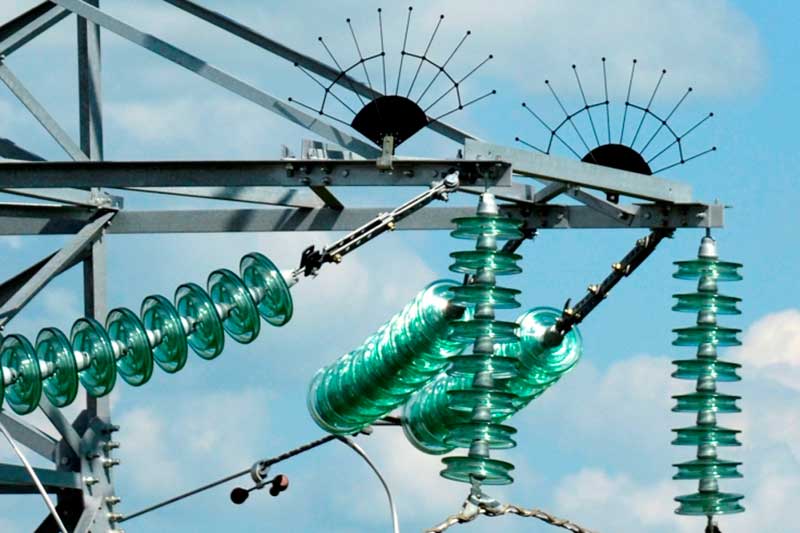

Toughened glass disc insulators are trusted for superior performance and account for 1/3 of global line insulator usage. Ideal for O&M departments, they provide:
1. Self-Elimination of Defects
Defective glass insulators self-detonate, eliminating manual inspections and reducing maintenance workload.
2. Long-Term Reliability
After 30-40 years in operation, glass insulators retain their mechanical strength and electrical performance, ensuring consistent reliability and reducing replacement costs.

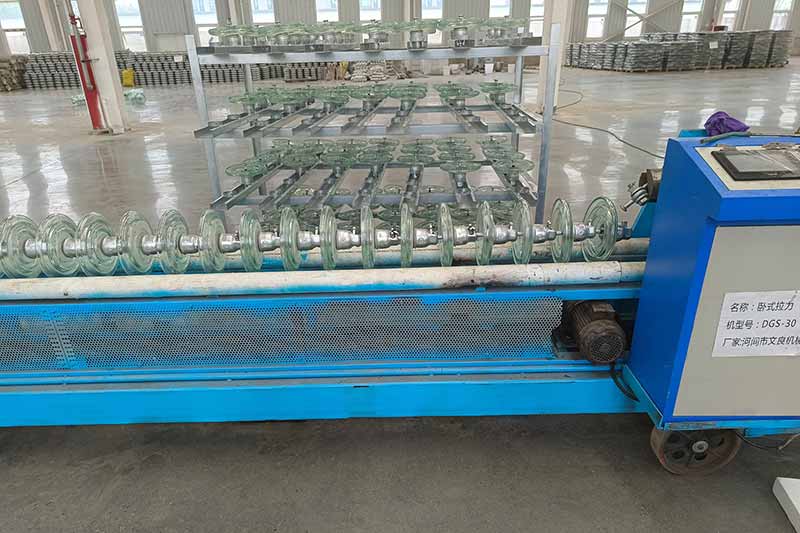

Manufacturing and testing are conducted by international standards (IEC) and are confirmed by detailed test reports

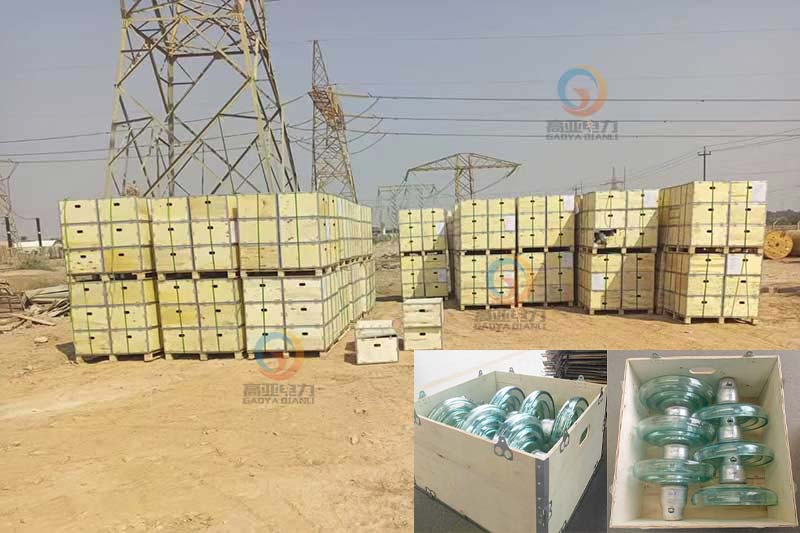

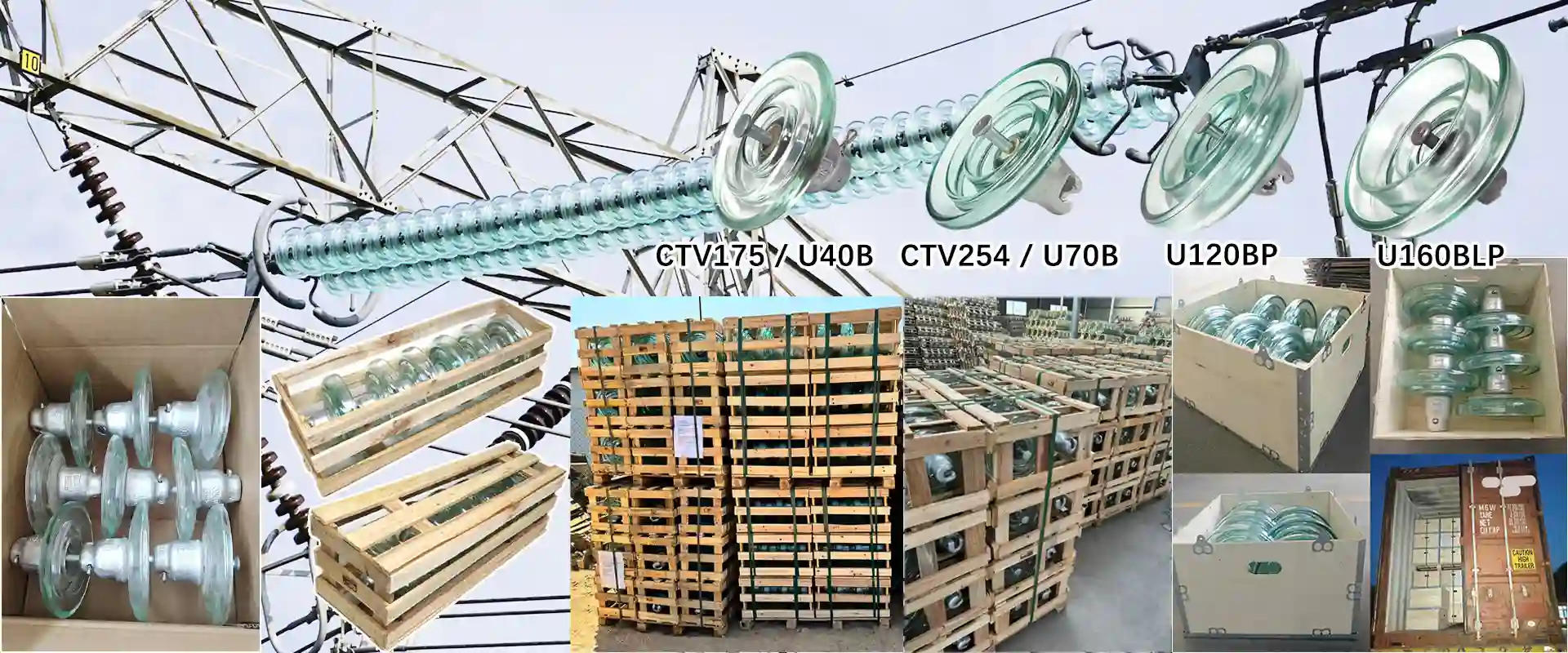

Choose Your Preferred Packaging Options for Glass Insulators
Gaoya Power — a Leading Chinese Glass Insulator Manufacturer

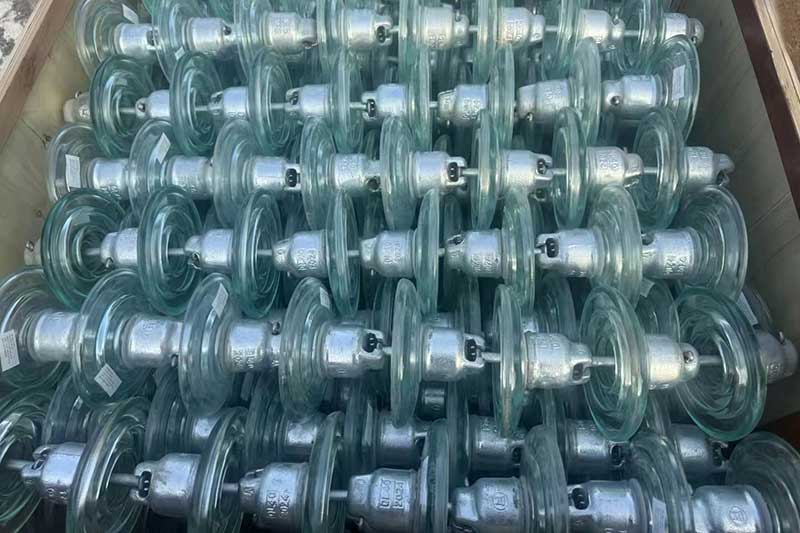

High-Quality Accessories for Toughened Glass Disc Insulators

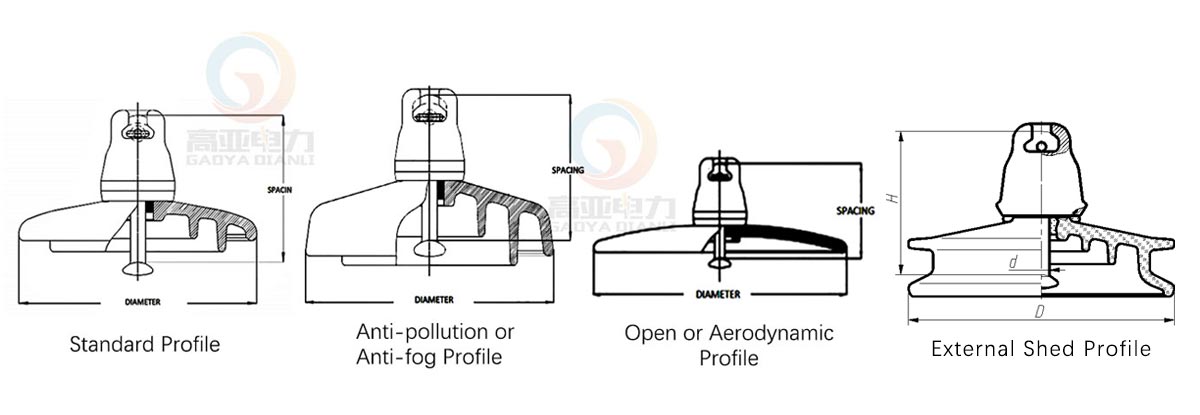

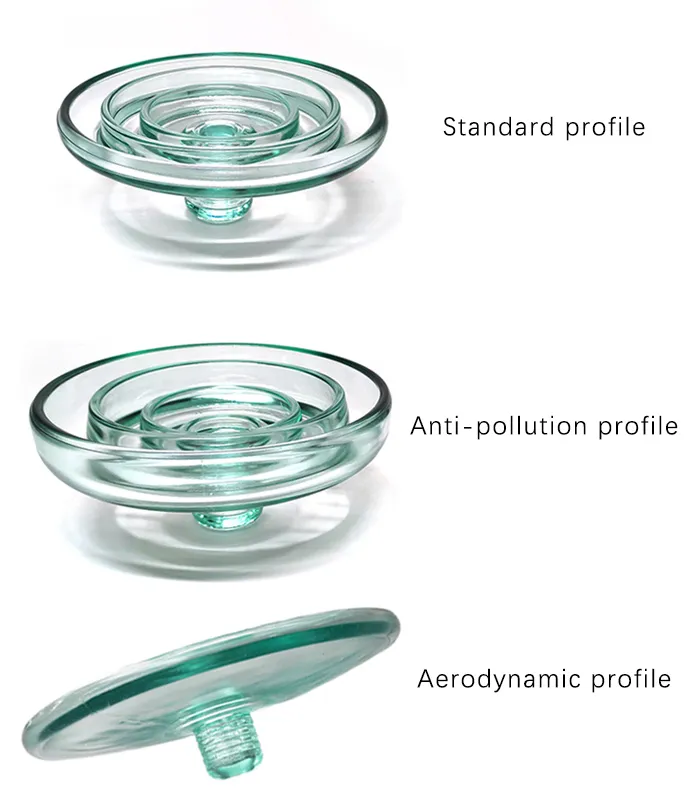

1. Different glass disc profiles are used for different environmental conditions, such as standard, anti-pollution, and aerodynamic types.

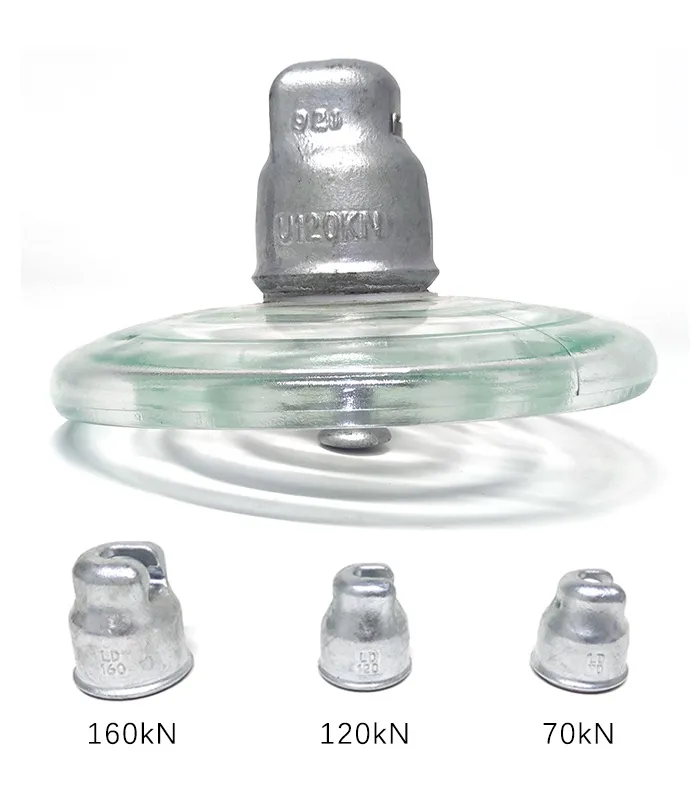

2. Glass insulators with different tensile strengths are equipped with hot-dip galvanized steel caps, such as 160 kN, 120 kN, and 70 kN.

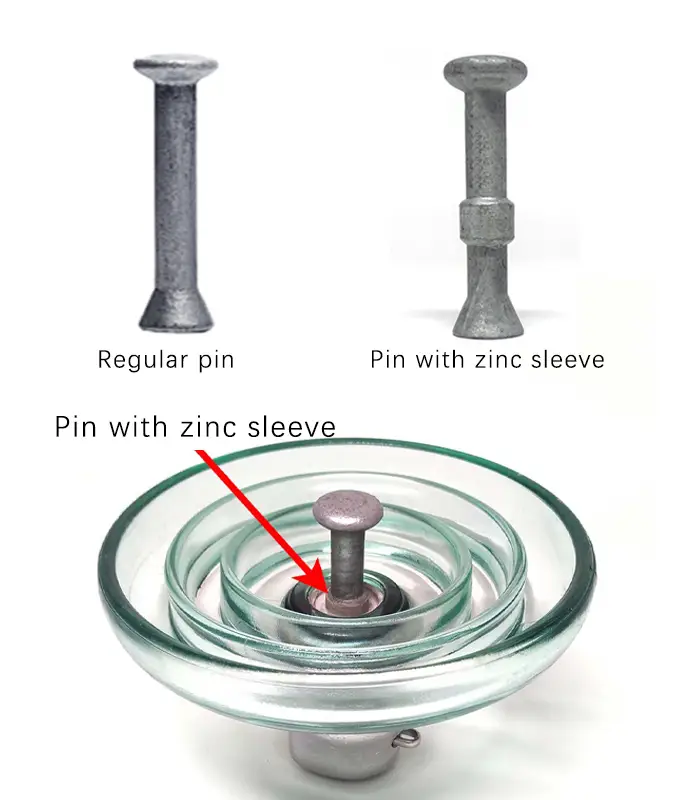

3. Available with regular or zinc sleeve-type coupling pins.

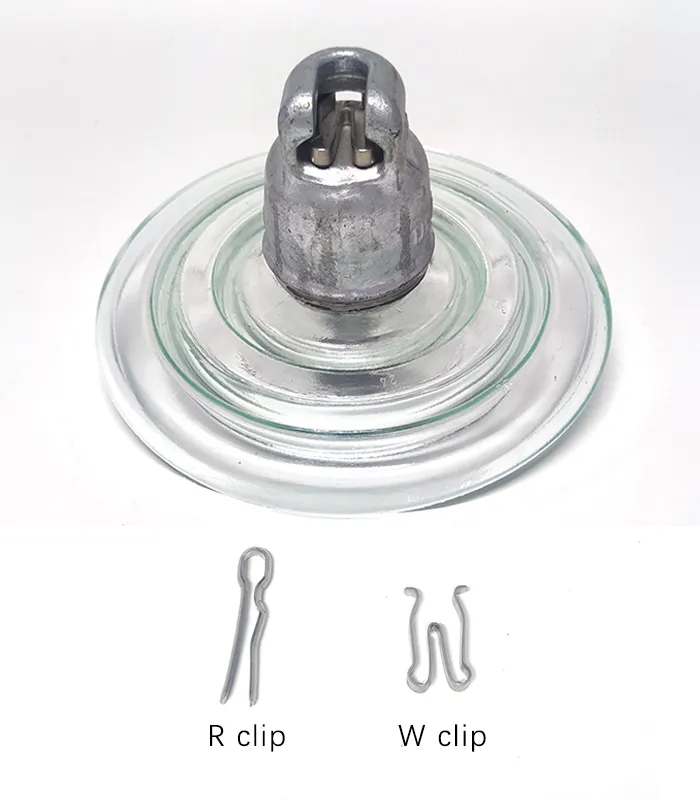

4. Stainless Steel Cotter Split Pin (R & W)
Why Choose Gaoya Power
Gaoya Power, a leading Chinese glass insulator manufacturer with 20+ years of experience, provides reliable power transmission and distribution solutions. We ensure safety and performance in the most demanding environments through innovation and excellence.
1. Direct Factory with Competitive Prices

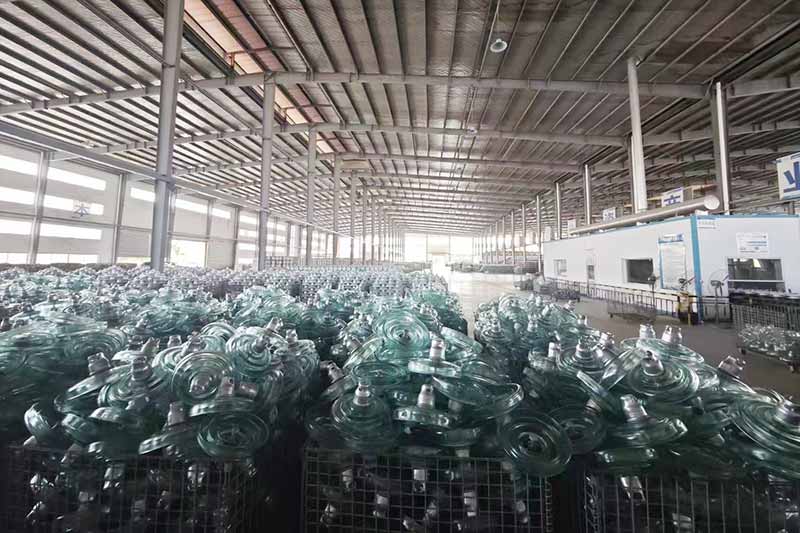

2. Large Stock of Brand-New Glass Insulators, Lead Time in as Little as 7 Days
3. All Products Comply with IEC Standards
4. On-Site Inspection Supported Before Shipment
5. Flexible Payment Terms: 30% Deposit, 70% Balance After Inspection (via Pictures or Your QC)
6. Free Samples Available (Shipping Cost Only)
