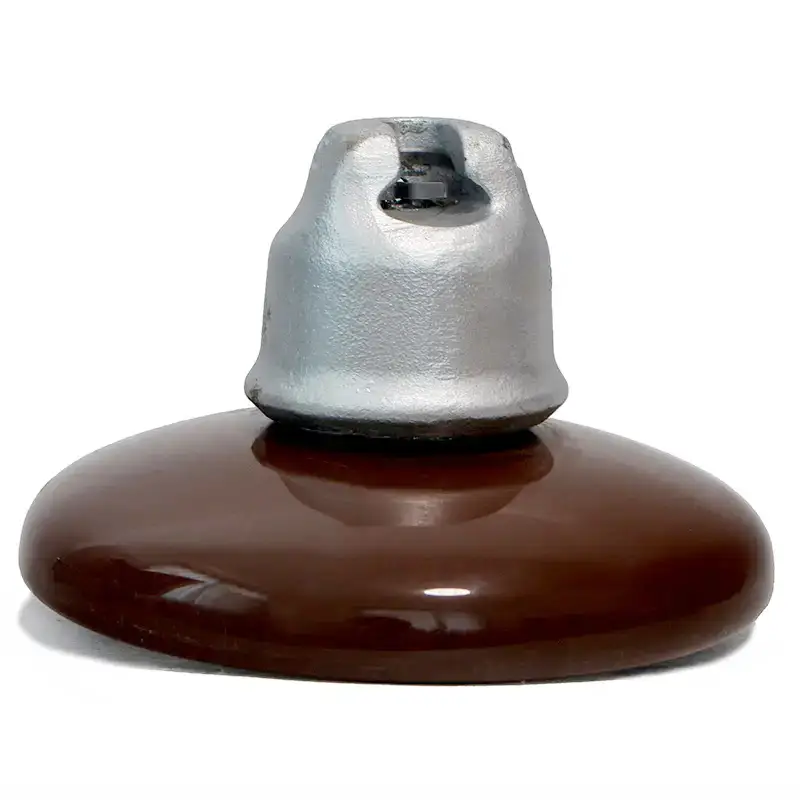

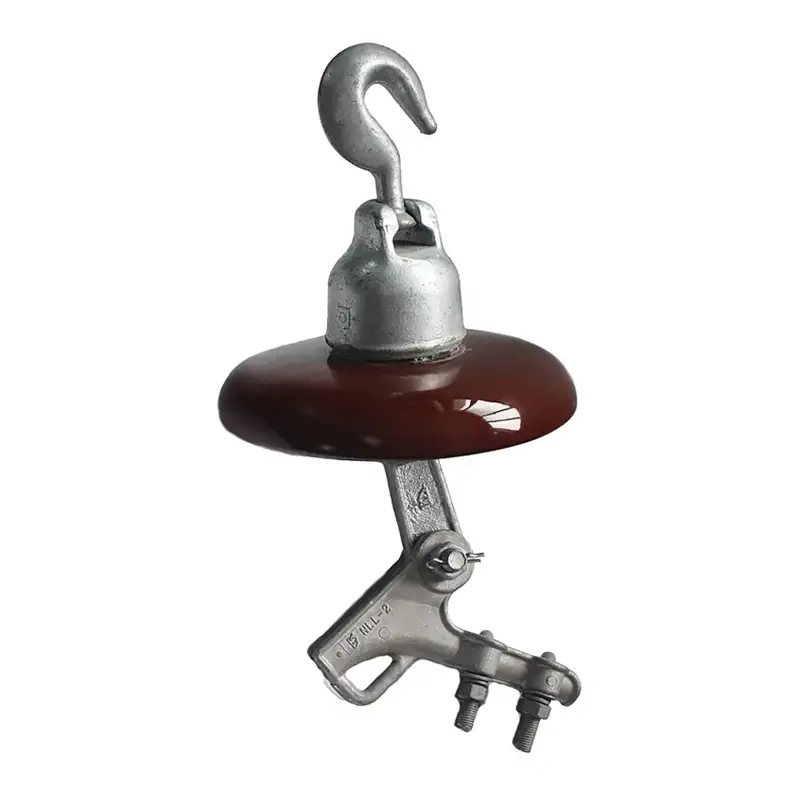

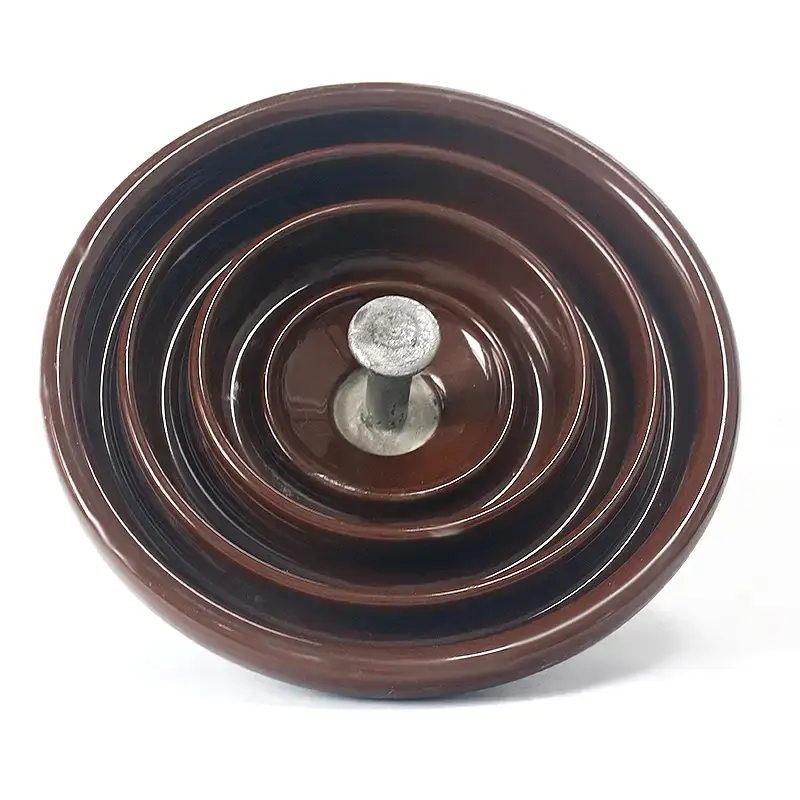

ANSI 52-5 Technical Drawing and Specifications
ANSI Class: ANSI 52-5
Main Dimensions and Standard Particulars
1. Leakage distance: 320mm
2. Coupling size: 20R
3. Power frequency puncture voltage: 110kV
4. Average flashover voltage
1) Power frequency
Dry: 80kV
Wet: 50kV
2) Critical-impulse 15x40us Wave
Positive: 125kV
Negative: 130kV
5. Radio-influence voltage data
1)Test voltage to ground: 10kV
2)Maximum RIV at 1000KHz: 50μV
6. Rated E&M failing load: 133kN
7. Tension proof load: 67kN
8. Impact strength: 10N · m
9. Color: Light grey/Brown
