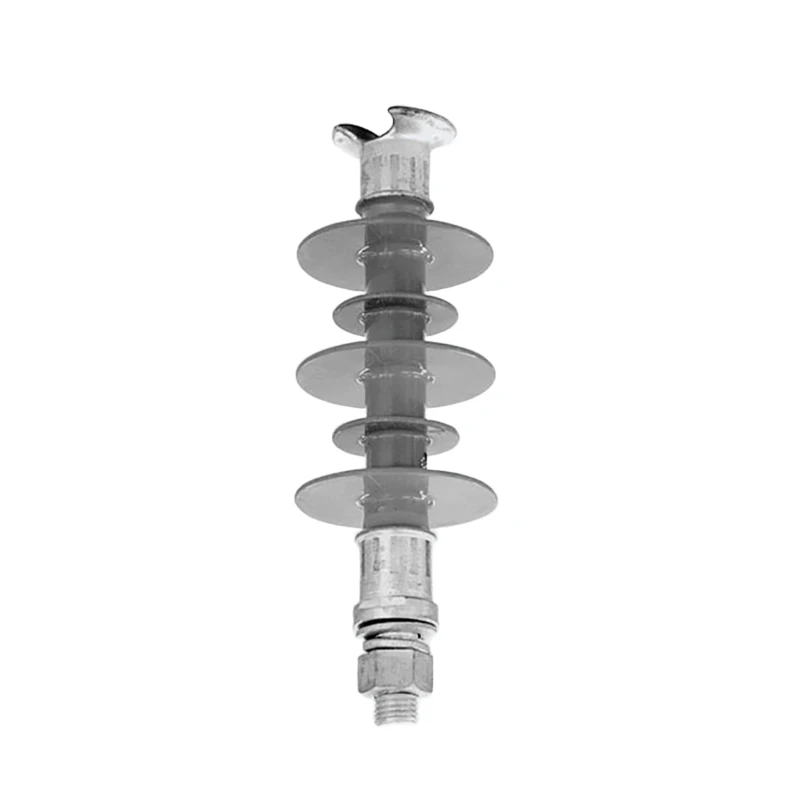

11kV polymer pin Insulator is designed for reliable insulation and mechanical support in 11kV overhead distribution line. Manufactured with hydrophobic silicone rubber sheds and a high-strength fiberglass core rod, this composite insulator ensures excellent performance under polluted and humid conditions.
Key features include a minimum creepage distance of 385 mm, a specified cantilever load (SCL) of 7 kN, and compliance with IEC 61952 standards. With strong lightning and wet withstand voltage ratings, this 11kV polymer pin insulator is a cost-effective and lightweight solution for modern power systems.
Typical structure height: 232 mm | Rod diameter: 24 mm | Thread: M20 | Color: Grey
For an accurate 11kV polymer pin insulator price, please share your drawing or technical specifications.

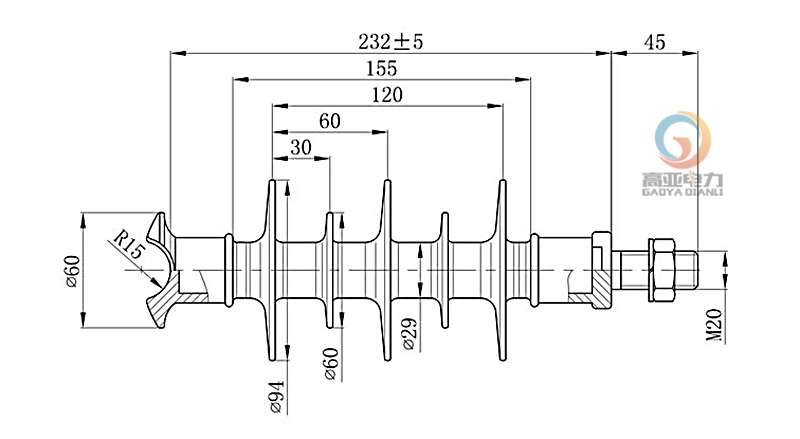

11kV Polymer Pin Insulator Drawing and Technical Specifications
• Polymer Pin Insulator Model: FPW-11T20
• Rated Voltage: 11 kV
• Structure Height: 232±5 mm
• Specified Cantilever Load (SCL): 7 kN
• Rod: 24 mm
• Min Creepage Distance: 385 mm
• Min Dry Arcing Distance: 185 mm
• Lightning Impulse Withstand Voltage: ≥100 kV
• Wet Power Frequency Withstand Voltage: ≥50 kV
• Standards: IEC 61952
• Color: Grey
• Shed: 5
• Thread Diameter(mm): M20
• Weight: 1.65 kg
