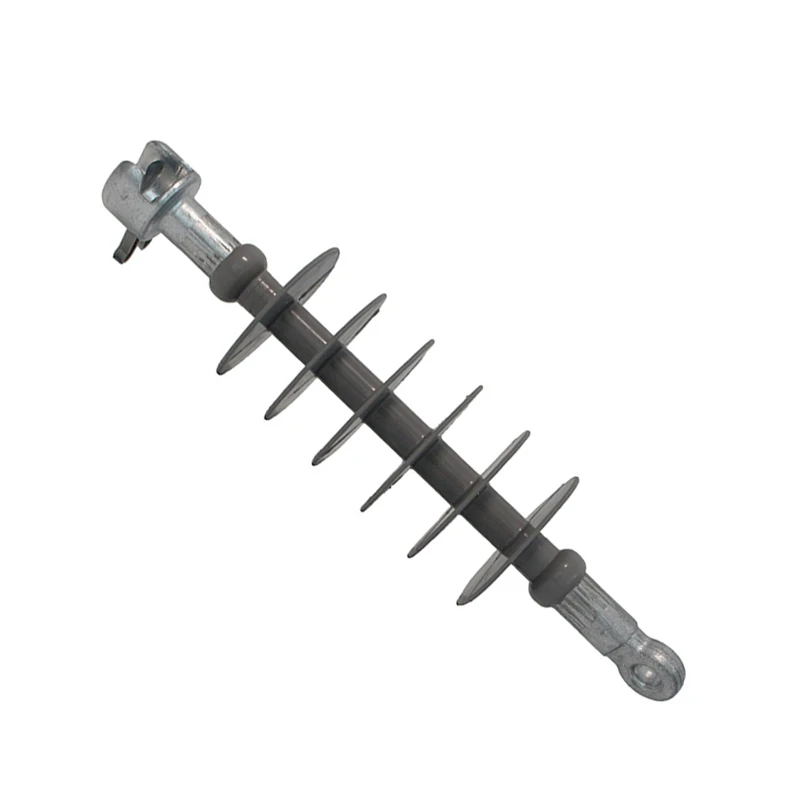

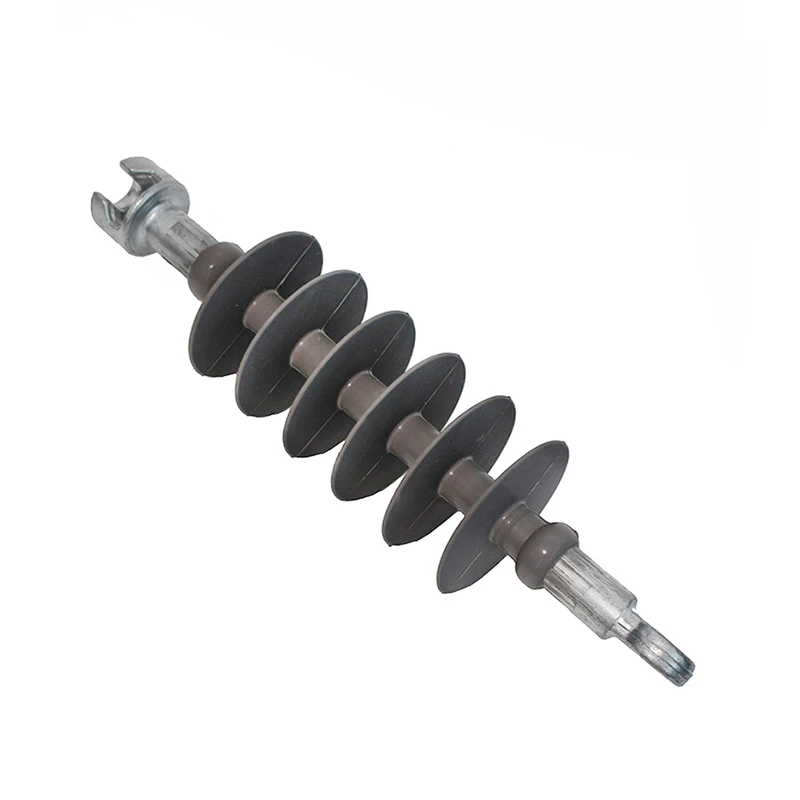

The 24kV polymer suspension insulator is used in 24kV medium-voltage distribution lines. It features a fiberglass core with 70kN mechanical load, and can be customized to 120kN or 160kN as needed. The silicone rubber housing offers excellent hydrophobicity and pollution resistance. Key specs: 760mm creepage distance, 200kV lightning impulse, 95kV wet withstand voltage. Lightweight, durable, and IEC 61109 compliant.
24kV Polymer Suspension Insulator Technical Specifications (IEC 61109)
• Polymer Insulator Model: FXB-24/70
• Rated Voltage: 24kV
• Specified Mechanical Load (SML): 70kN

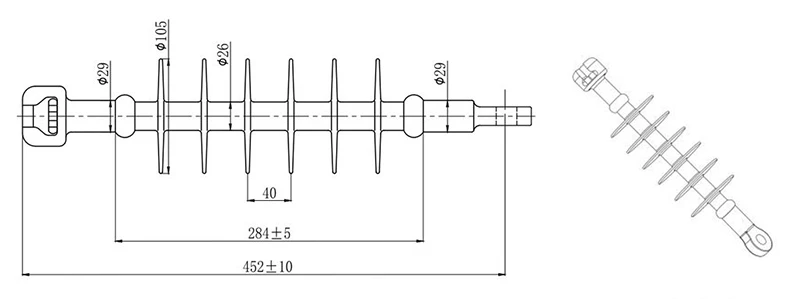

• Height: 452±10mm
• Creepage Distance: 760mm
• Lightning Impulse Withstand Voltage: 200kV
• Power Frequency Wet Withstand Voltage: 95kV
